High precision smart Infrared temperature sensor , RS485 Infrared thermometer

High precision smart Infrared temperature sensor , RS485 Infrared thermometer - KingCare | KingCare.net
IT-6H3is one model of IT-6 Infrared Thermometer ,provides the advantage of infrared temperature measurement in a compact, integrated sensor. It measures target temperatures ranging from 300 °C to 1200 °C . The units on board electronics are protected by an aluminium housing, allowing the sensor to function in ambient temperatures to 60 °C without cooling.
The sensor features coaxial laser sighting. The optical resolution is 150:1 and the smallest spot size is 2mm. Laser sighting and high-resolution provides the solution for either small targets or long-distance measurements. Standard features include adjustable emissivity which are 0.95, 0.9,0.85 and 0.8. It is suitable for ferrous metal with bad surface finish and som e no n-metallic material.
IT-6 Infrared Thermometer can be equipped with a compact, value-priced monitor that configures the functions via the front panel. It also includes optional bidirectional RS485 serial communications between the thermometer on the factory floor and a personal computer in the control room. This enables remote setup,monitoring and maintenance, especially valuable for installation in hard-to-reach locations.
High precision smart Infrared temperature sensor , RS485 Infrared thermometer - KingCare | KingCare.net
Temperature Ranges
800 °C to 2500 °C(can be adjusted as customer required)
Accuracy
±0.5%(FS)
Repeatability
0.2%
Temperature Resolution
0.5
Response time
≤10ms
Analog Output
0-20mA /4-20mA ,0-5V
Digital
RS485
Powder Supply
24VDC ±10% 200mA

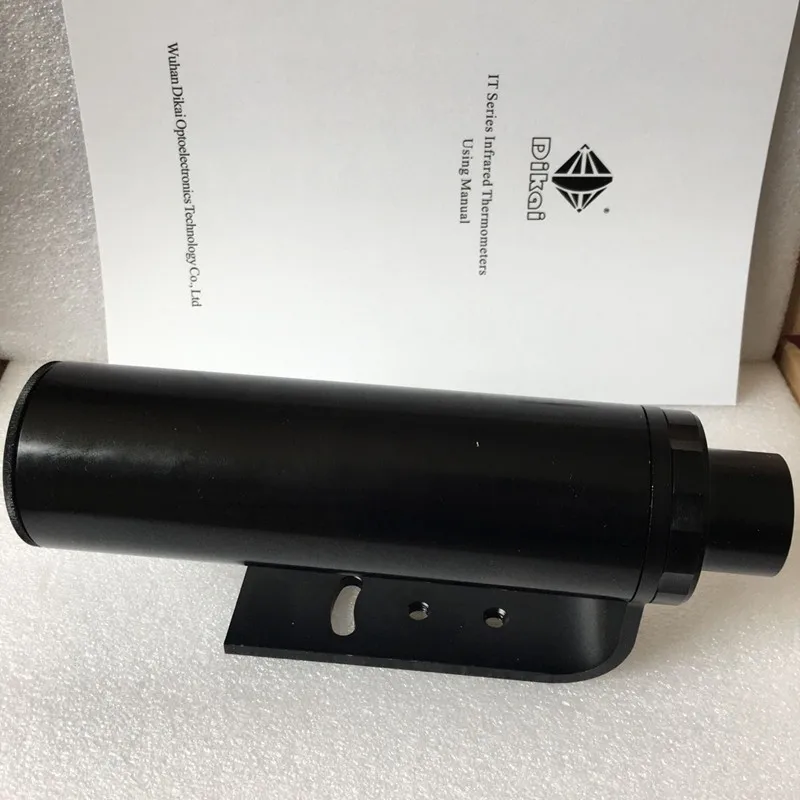

Detail Images
