Infrared Thermometer With The Best Accuracy And Quality

Infrared Thermometer With The Best Accuracy And Quality - KingCare | KingCare.net
Infrared Thermometer With The Best Accuracy And Quality
Model select reference (can be design for special requirement)
By the native closed-loop control output imports and the switch import, you can control the output power of high, medium frequency induction heating machine, keep the temperature of the workpiece stable in a constant temperature set point, which can automatic thermostat, timing heating, pre-set temperature and heating time. The alarm port can be used as warning lights, buzzers and other functions.
Infrared Thermometer With The Best Accuracy And Quality - KingCare | KingCare.net
Main parameters
1. Main models
Model
Temperture Range
Structure
SXB5605
50-650 °C
Line fiber-optic thermometer
SXB280
250-800 °C
Line fiber-optic thermometer
SXB412
400-1200 °C
Line fiber-optic thermometer
SXB716
700-1600 °C
Line fiber-optic thermometer
SXB1020
1000-2000 °C
Line fiber-optic thermometer
SXB1527
1500-2700 °C
Line fiber-optic thermometer
2. Note: The low-temperature type SXB 060: temperature range is 0-600 °C, its line thermometer, not a fiber-optic thermometer, but the control power is similar. For details please refer to SX B060 special instructions, this part of the contents do not suitable for SXB 060
3. Power supply voltage: 220VAC, power is less than 10W
4. Distance coefficient :75:1
5. Repeat accuracy: 1 °C
6. Length of fiber :1.4M (Standard )
7. Timescale: Choose from 9.9 seconds to 99 seconds, or set according to requirement
8. Start timing: Timing begin from machine start, or begin from preset temperature
9. Laser sighting: After enabled laser aimed, if there isnt any operation within 30 seconds, the laser aimed switch automatically shut down (15 seconds for the standard setting), the others set according to customer requirements
10. Working temperature: main engine temperature ≤ 50 °C, humidity is 10%-80% ; Fiber optic probe temperature ≤ 150 °C, humidity is 10%-80%
11. Size: main engine 240(L) × 180(W) × 110 (H)mm, Fiber optic probe diameter: 20 × 90mm

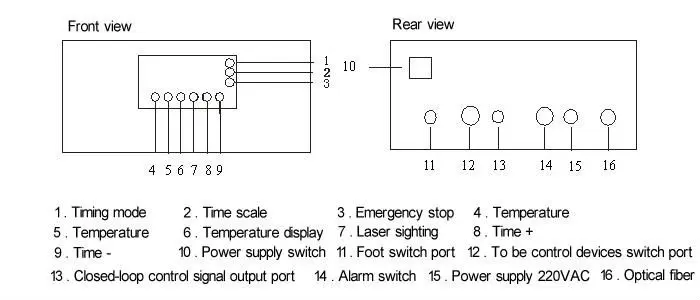

The machine operator panel
Infrared Thermometer With The Best Accuracy And Quality - KingCare | KingCare.net
remark,at means@ Infrared Thermometer With The Best Accuracy And Quality
....
Infrared Thermometer With The Best Accuracy And Quality

Infrared Thermometer With The Best Accuracy And Quality
