Non contact laser infrared Pyrometer IR temperature sensor for forging , casting , metal processing

Non contact laser infrared Pyrometer IR temperature sensor for forging , casting , metal processing - KingCare | KingCare.net

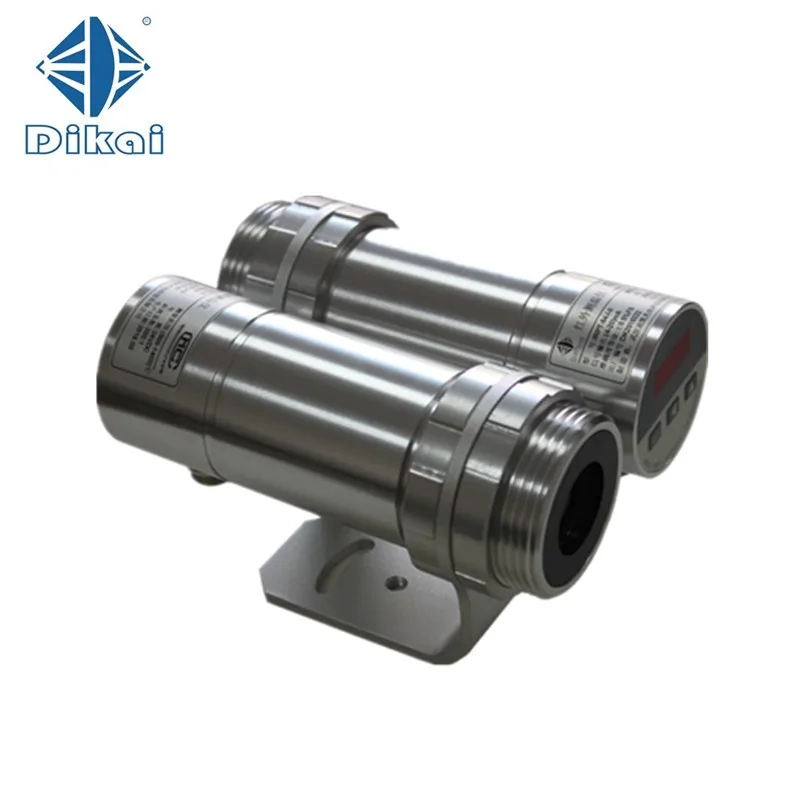

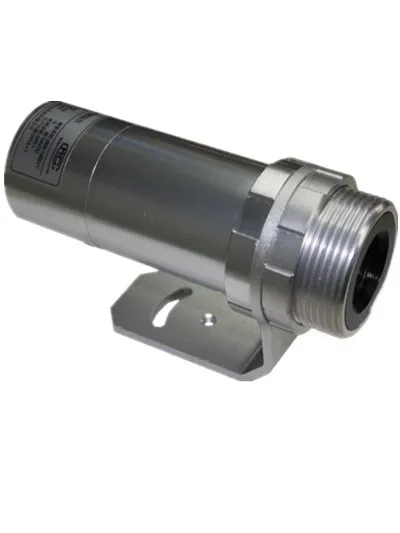

IRPTH Infrared Pyrometer
IRPTH is one model Infrared temperature sensor of IRPT Series, which covers a temperature range of minus 500 to 1650°C with 2 models .
IRPT is a small size, powerful universal infrared thermometer. IRPT adaptability is the best choice for industrial temperature measurement. IRPT can meet the needs of the general field temperature measurement,Users can calibrate the instrument on the spot, can set the temperature measurement speed and communication parameter .The thermometer has a coaxial laser aiming function.The laser aiming point diameter is less than 3mm,and does not change with distance.Highlight LED displays current measurements .Simple debugging, easy installation.
IRPT can achieve every long distance measurement, measuring distance between 0.8-15 meters, the measured value unchanged. It is especially suitable for very long distance temperature measurement.
Specification
Non contact laser infrared Pyrometer IR temperature sensor for forging , casting , metal processing - KingCare | KingCare.net
Temperature Ranges
500°C to 1650 °C(can be adjusted as customer required)
Model
IRPTH Infrared Pyrometer
Accuracy
±0.5%(FS)
Repeatability
0.2%
Temperature Resolution
0.5
Response time
≤10ms
Analog Output
0-20mA /4-20mA ,0-5V
Digital
RS485
Powder Supply
24VDC ±10% 200mA
